The Bells

The design of the bells is the result of extensive research and modelling by Taylors. They need to be thick enough to sound like real bells but not too thick that they will accentuate the higher frequencies. And of course in order that the entire installation didn’t exceed our target weight of 1800kg.

Bell frequencies

This analysis of mini ring bell sizes and frequencies of bells in different small rings was part of the design process. The bells are actually Taylors’ patent carillon design but tuned much lower and therefore thinner.

Michael Wilby tapping the bells


Final details of the bells

Bell No.Diam. (inch)Diam. (mm)Weight qtrWeight lbWeight kgNoteFreq

19.42380219.5C#4430
29.62430229.8B3945
310.225802310.5A3521
410.62701113.0G#3318
511.42891716.0F#2959
612.932712222.5E2636
Bells at Taylors
Roger Booth with the back five bells
The inside of a bell
Inside one of the bells
Hanging a bell
Phil Gay with Mike Semken at Taylors

The pictures below show the bells in an initial temporary set up in Taylors’ workshops.

The Treble
The Treble

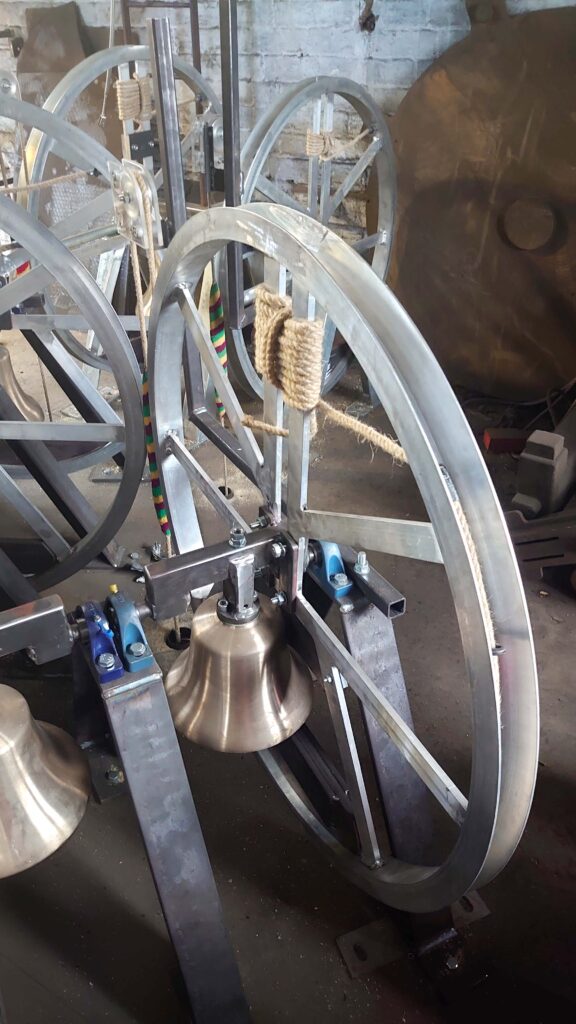

The Second
The Second
The Third
The Third
